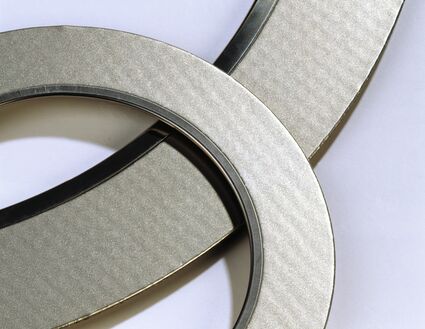

The product Sigraflex MF V20011Z2MF IB (2 mm) made by SGL Carbon GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The most recent data is shown here. This data was published at 2016-07-17 as revision 4. 2011-10-27 was the date of first publication. Gasket data was determined according to DIN EN 13555 2014-7.

Certificates and Admissions

No admissions or certifications found

Specification

• Manufacturer: SGL Carbon GmbH
• Trade name: Sigraflex MF V20011Z2MF IB
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2014-7
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
