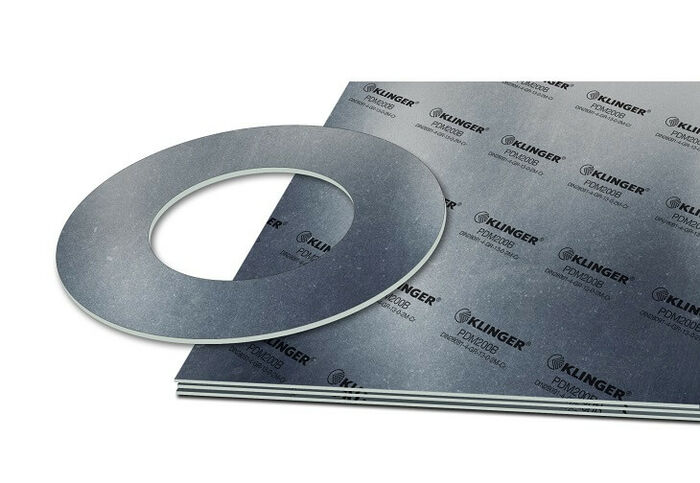

The product KLINGER® Graphite Laminate PDM200B (2 mm) made by KLINGER GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). The data of this gasket was published at 2012-03-27. Gasket data was determined according to DIN EN 13555 2005-2.

Certificates and Admissions

•  DVGW DIN3535-6    Show file   Others
•  REACH    Show file   Others
•  REACH    Show file   Others
•  DVGW DIN3535-6    Show file   Others

Specification

• Manufacturer: KLINGER GmbH
• Trade name: KLINGER® Graphite Laminate PDM200B
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: DIN EN 13555 2005-2
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
