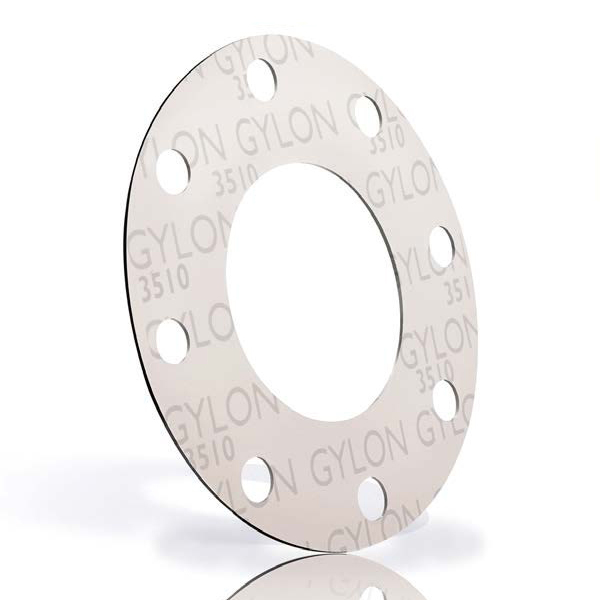

The product Gylon® Style 3510 (2 mm) made by Garlock GmbH is a gasket out of the category Non-metallic flat gaskets with or without inserts (EN 1514-1). Data of revision 3, published at 2020-12-16, is shown here. A newer revision, revision number 4, published at 2021-03-24, is available! 2012-07-24 was the date of first publication. Gasket data was determined according to prEN 13555 2019-11.

Certificates and Admissions

•  KTW    Show file   Others
•  TA Luft + Blowout safety    Show file   Others
•  TA Luft + Blowout safety    Show file   Others
•  EC 1935/2004    Show file   Others
•  EC 1935/2004    Show file   Others
•  FDA    Show file   Others
•  FDA    Show file   Others

Specification

• Manufacturer: Garlock GmbH
• Trade name: Gylon® Style 3510
• Type: Non-metallic flat gaskets with or without inserts
• Manufacturing standard: DIN EN 1514-1 1997-8
• Gasket height: 2 mm

Test details

• Test standard: prEN 13555 2019-11
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 92 x 49 mm
• Surface area: 4196 mm²
