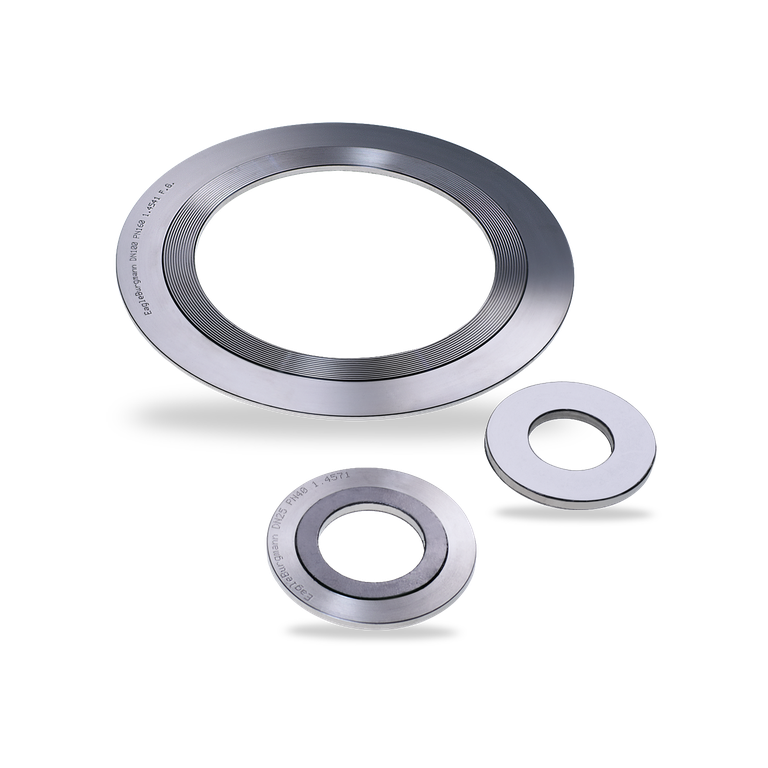

The product Kammprofil Dichtung 9598/P (5 mm) made by EagleBurgmann Germany GmbH & Co KG is a gasket out of the category Covered serrated metal gaskets for use with steel flanges (EN 1514-6). The data of this gasket was published at 2013-11-19. Gasket data was determined according to DIN EN 13555 2005-2.

Certificates and Admissions

No admissions or certifications found

Specification

• Manufacturer: EagleBurgmann Germany GmbH & Co KG
• Trade name: Kammprofil Dichtung 9598/P
• Type: Covered serrated metal gaskets for use with steel flanges
• Manufacturing standard: DIN EN 1514-6 2004-3
• Gasket height: 5 mm

Test details

• Test standard: DIN EN 13555 2005-2
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 68 x 53 mm
• Surface area: 1425 mm²
