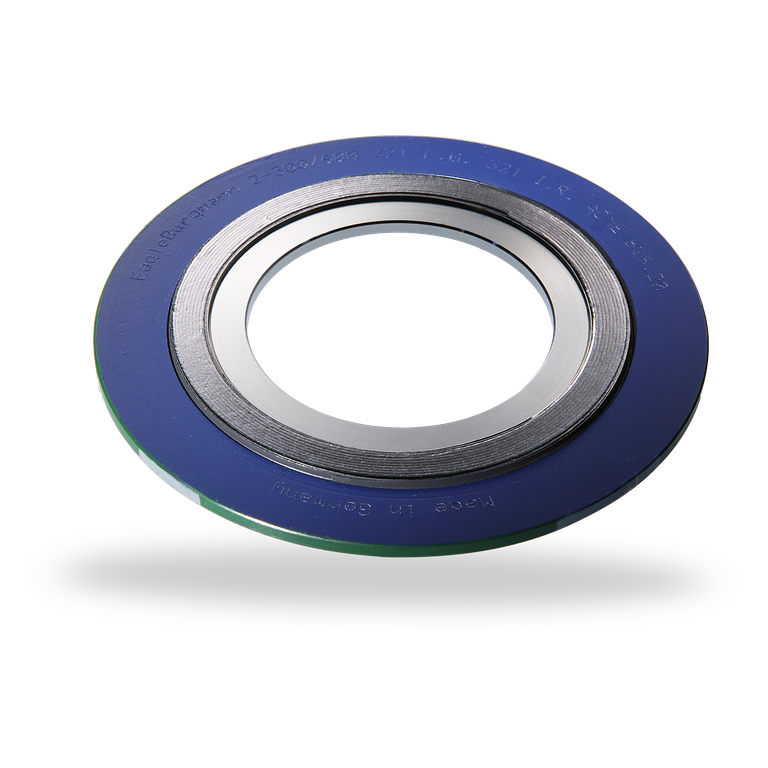

The product Spiraltherm 9594/GIA (5 mm) made by EagleBurgmann Germany GmbH & Co KG is a gasket out of the category Spiral wound gaskets for use with steel flanges (EN 1514-2). The data of this gasket was published at 2013-11-19. Gasket data was determined according to DIN EN 13555 2005-2.

Certificates and Admissions

No admissions or certifications found

Specification

• Manufacturer: EagleBurgmann Germany GmbH & Co KG
• Trade name: Spiraltherm 9594/GIA
• Type: Spiral wound gaskets for use with steel flanges
• Manufacturing standard: DIN EN 1514-2 2014-8
• Gasket height: 5 mm

Test details

• Test standard: DIN EN 13555 2005-2
• Tested size: DN40/PN40
• Simulated test stiffness: 500 kN/mm
• Geometric dimensions: 66 x 56 mm
• Surface area: 958 mm²
